MIL-PRF-81836/9B
NOTES:
o
Dimensions are in inches, tolerances: decimals + .010, angles + 1 .
1.
2.
Remove all burrs and break sharp edges to 0.005 inch minimum.
3.
Drawing symbols per MIL-STD-100.
4.
Additional dimensional data is listed in table I.

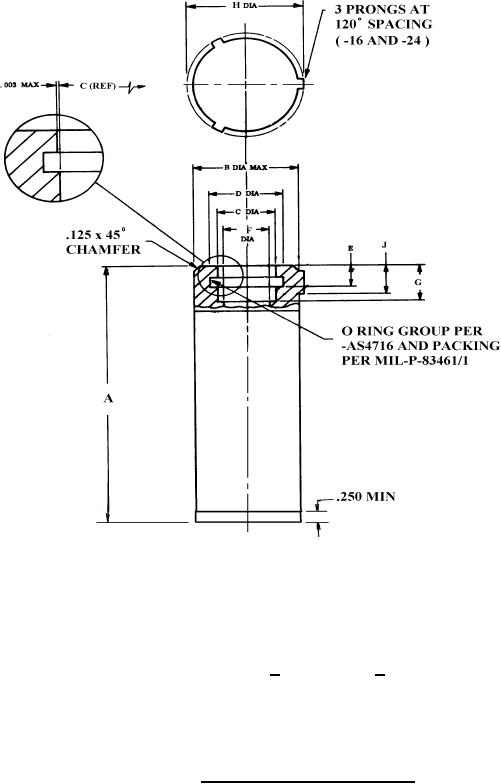

FIGURE 1. Configuration and dimensions.
2
